CH7111A
- If you have questions about the product, or encounter any, you can register the site account,
- Then go to the technical support forum to ask for help.
|
|
|
|
l Compliant with HDMI specification version 2.1 l Supports up to HDMI 12Gbps FRL data rate l Supports up to HDMI 6Gbps TMDS data rate or 600 MHz TMDS clock for video transport l Dedicated PLL for removing the jitter of TMDS clock and data, integrated CDR for removing the jitter of FRL signal l DP++ support in AC coupling input mode for HDMI level shifter l DC coupling input mode support for HDMI signal retiming l Automatic link training for FRL mode l SCDC (Status and Control Data Channel) interception supported l Adaptive equalizer to compensate for HDMI cables, PCB layout and/or connector losses, and supports up to 34 dB boost at 600MHz l Configurable Pre-Emphasis on output driver l 3.3 and 1.2V Power supply l Crystal-free l IIC-over-AUX transaction supported l Active DDC buffer and related control register integrated l HDMI Identifier supported l IIC serial port for configuration and chip debugging l Low power architecture l RoHS compliant and Halogen free package l HBM 4KV ESD performance l Offered in 48-Pin QFN package (6 x 6 mm)
|
|
|
|
|
|
|
|
Chrontel’s CH7111A is an
innovative, low-power, high performance HDMI re-timing semiconductor device for
improving the input TMDS/FRL signal to meet the HDMI 2.1 signal integrity

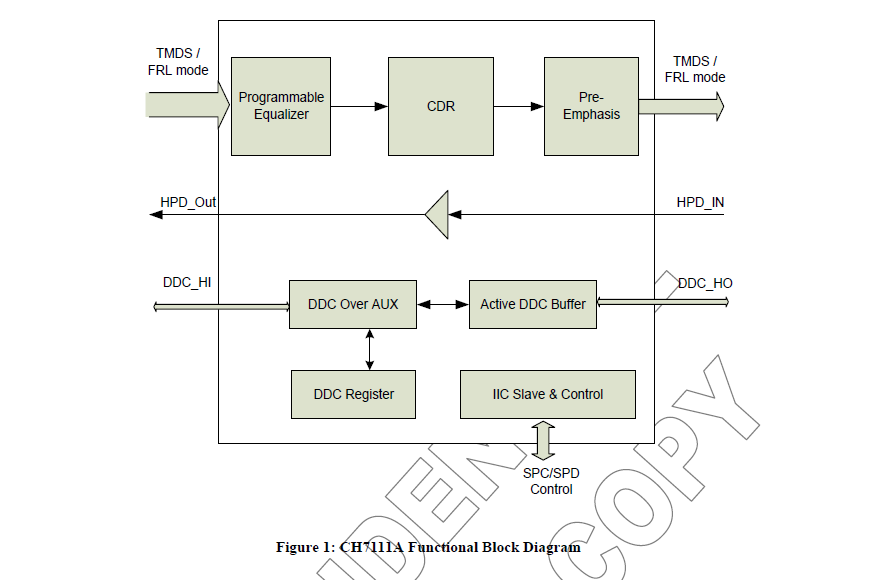

requirement. This device integrates adaptive equalizer, receiver CDR, internal
oscillator, high performance PLL and configurable Pre-Emphasis module, and is
specially designed targeting for the HDMI 2.1 repeater and the DP++ adaptor
market segments.
PCB Layout and Design Guide for CH7111A, AN-B057 rev0.1
